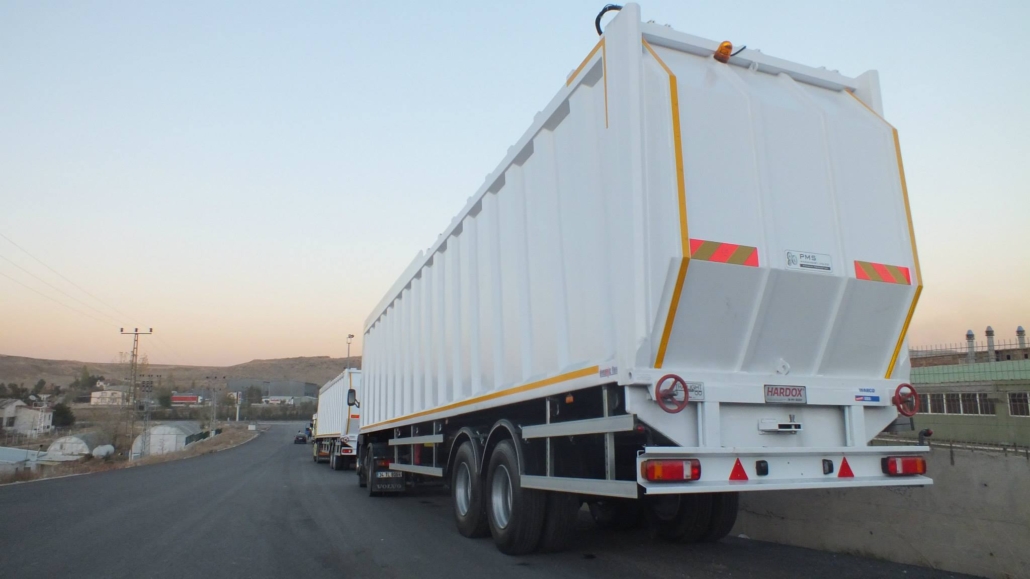

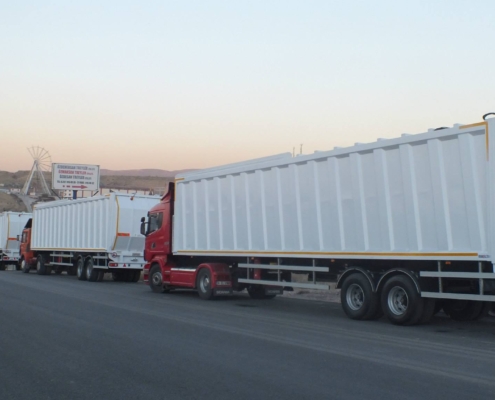

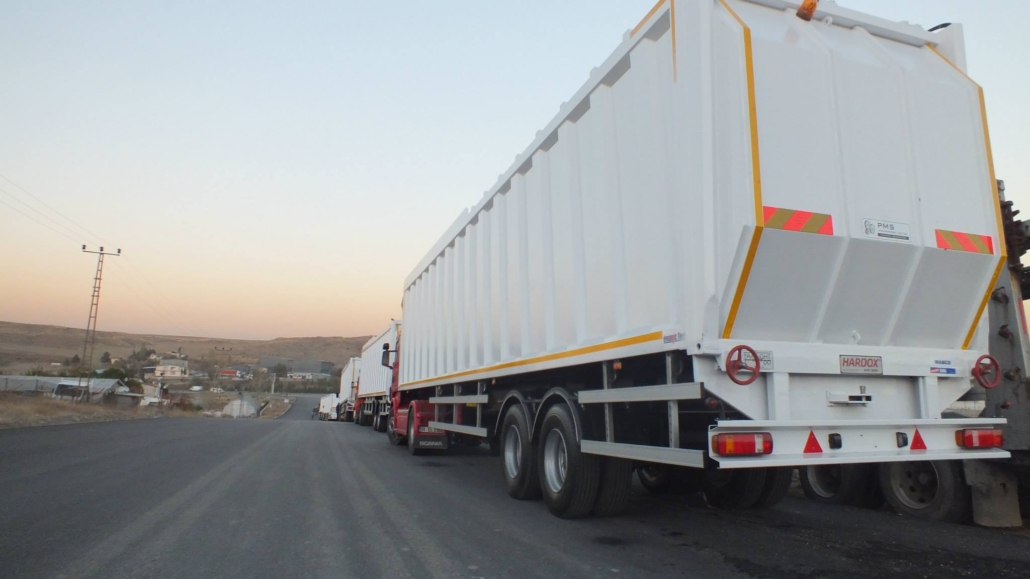

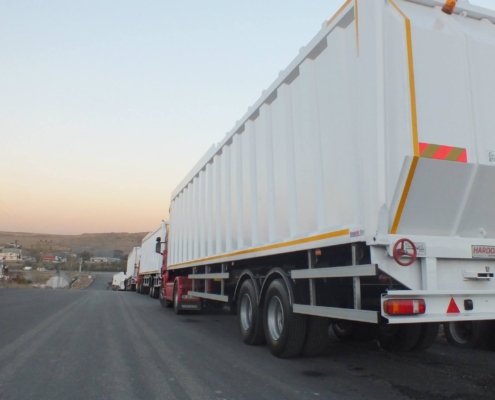

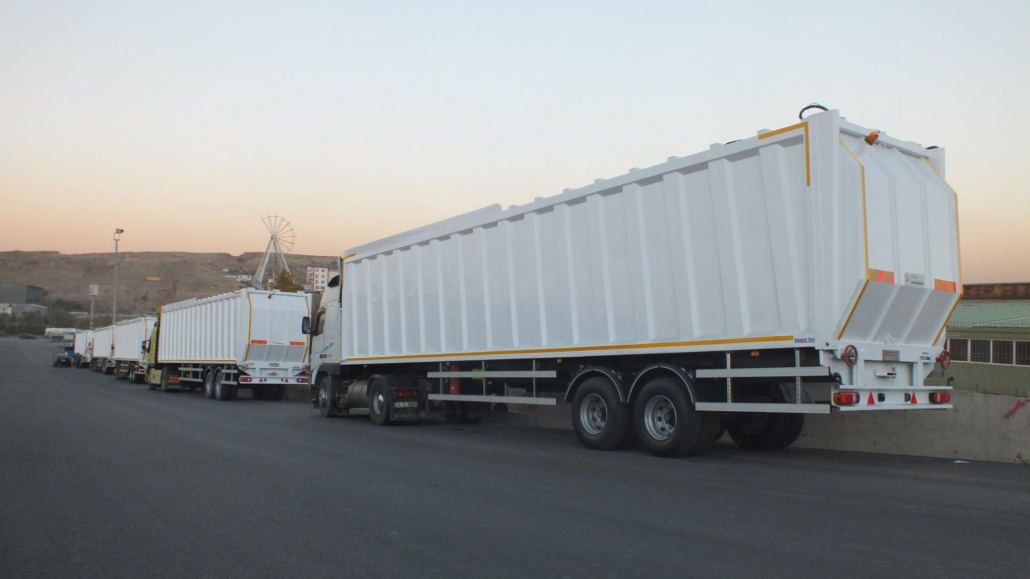

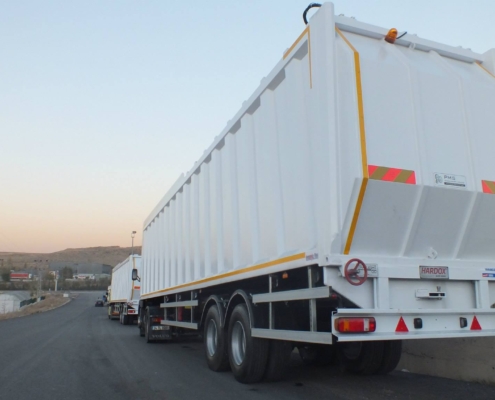

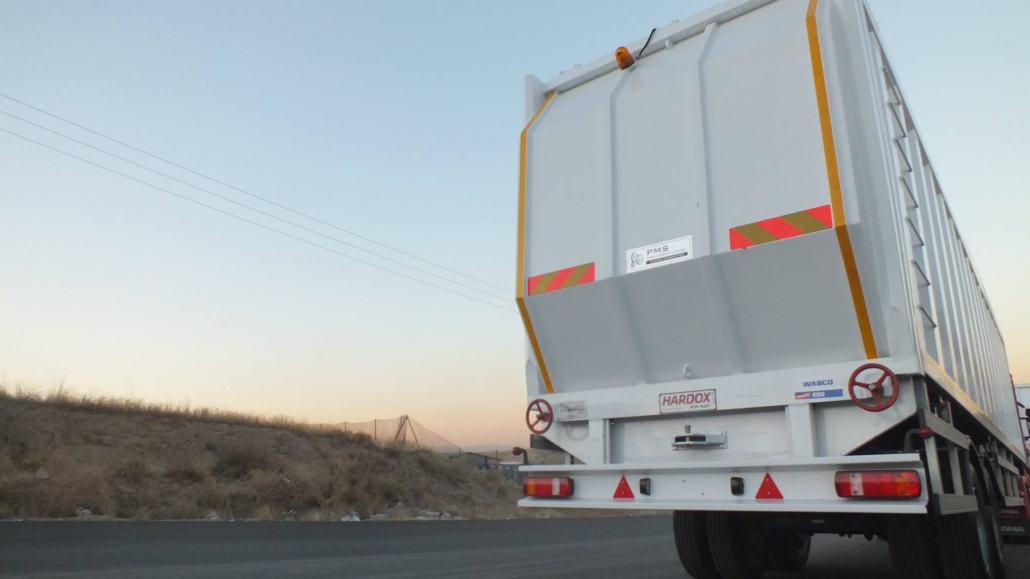

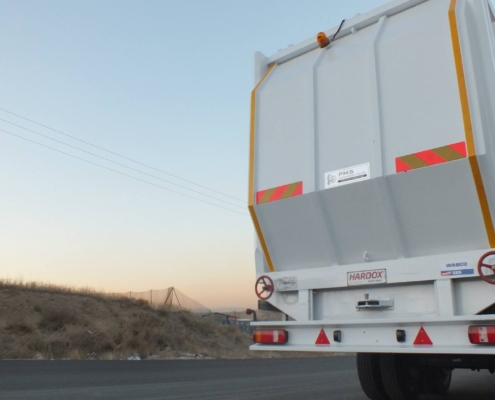

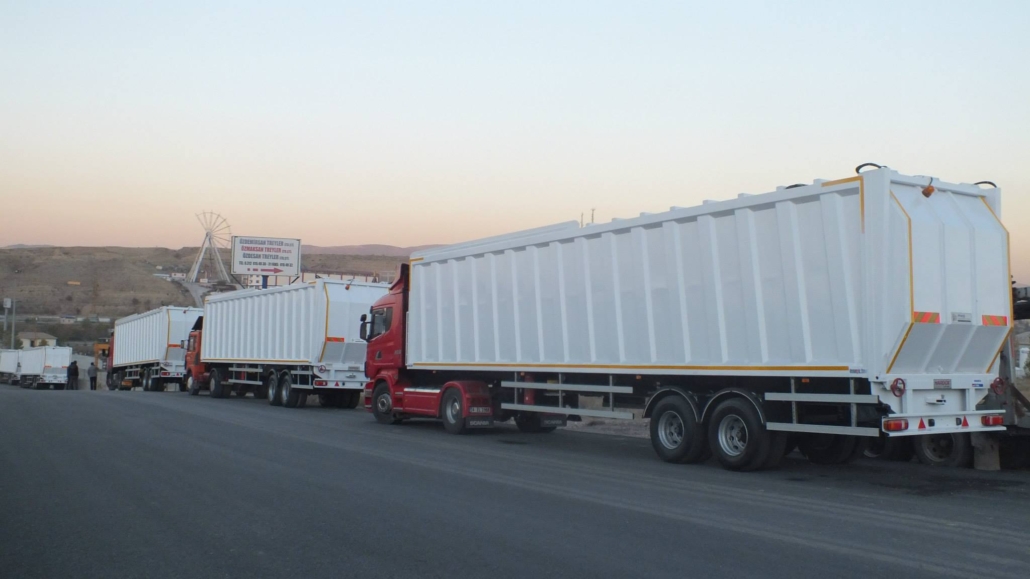

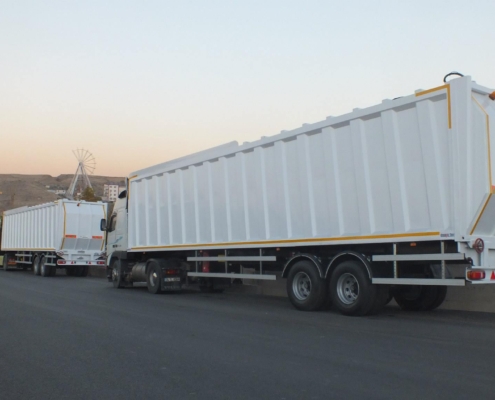

Self Compacting Garbage Trailer

Specifications

TECHNICAL SPECIFICATIONS

Trailer can be used with 4×2 and 6×4 tractor heads.

Trailer Dimensions

1100mm x 2550mm x 4000mm (interior height 2400mm)

King Pin and Mechanic Jacks

Jing Pin and Mechanic Jacks will be JOST Brand

Capacity

Total capacity is 58m3 up to 72m3 hydraulic driven by 4 cylinder Deutz air cooled auxilary engine

Main Chasses

All steel used is st-52 A1 grade steel.

Main chasse is 8mm ST-52

Bottom and top lamas are 15mm ST-52

Side chasses are 60x120x5mm profile

Bottom platform is 80 NPI

Total 8 units of middle support with 5mm ST-52 grade will be used

Top Platform

Trailer upper platform rear door is hydraulic opening

Trailer upper loading door hydraulic system is 3250 mm strechable.

Upper platform height is 2400mm and 11000 mm length

Base will be 6 mm ST-52 sheet and will be reinforced with 80 npi to be placed under base sheet

4 mm st52 sheet reinforcements

Rear and top cover will be 5 mm st 52

Hydraulic Cylinder

1 unit Ø 80/40*3250 stroke for the upper platform move

2 units Ø85/35*310 stroke for the rear door move

1 unit Ø180/100*2500 stroke for the middle pusher cylinder

2 units Ø75*230 stroke for the pusher lock cylinder

1 unit Ø85*320 stroke for the rear door locking cylinder

Platform Poles

Poles will be from 4mm ST-52 twisted steel

Hydraulic hoses will be hidden inside these poles

Shovel (Pusher)

Complete shovel (pusher) will be from 5mm ST-52 A1 grade steel

Shovel is reinforced by 160 NPU profiles

To make the movement of the shovel easy, 20mm thickness special polyster will be installed on the catwalk and will be reinforced with 15mm thickness polyster on the sledge sides

Engine

4 cylinder air cooled Deutz engine

Waste Water Tank

Waste water tank will be installed on the back of the trailer with manual discharge valve.

Axles

Each axles will be 14 tons capacity with 90 type bolster damper scissors type with 8 tyres.

Air Suspension

Axles are scissors type therefore no air suspension available

Suspension

Trailer type suspension with schok absorbers

Brake adjustment lever

Automatic brake rattle

Brake Folding Hood

24 type service folding hood with 24×30 emergency boot

Brake System

EBS (WABCO) with automatic load adjustment valve and circuit filter equipped 2 way air type brake system

Hydraulics

R6SA2 pressure hyraulic hose
All pumps will be Italian brand
All pump flanges will be Italian brand
ON-OFF and Manual valves will be Walvoil or equivalent Italian brand.
14mt hyrdaulic hose drum
Acceleration valve (VEB-100-24VDC) will be Walvoil or equivalent Italian brand.
140lt Fan cooler
Control panel and remote control system
System will be driven by Deutz engine.

Electric System
System will be online by 7 pin EEC standart 24V trailer socket SABA Brand

Tyres
12R22.5 Pirelli Brand
Total 8 tyres + 1 spare tyre
Tyres will be with E certified rims

Painting
2 layers of primer painting
2 layers of final acrylic painting according to the customers color
